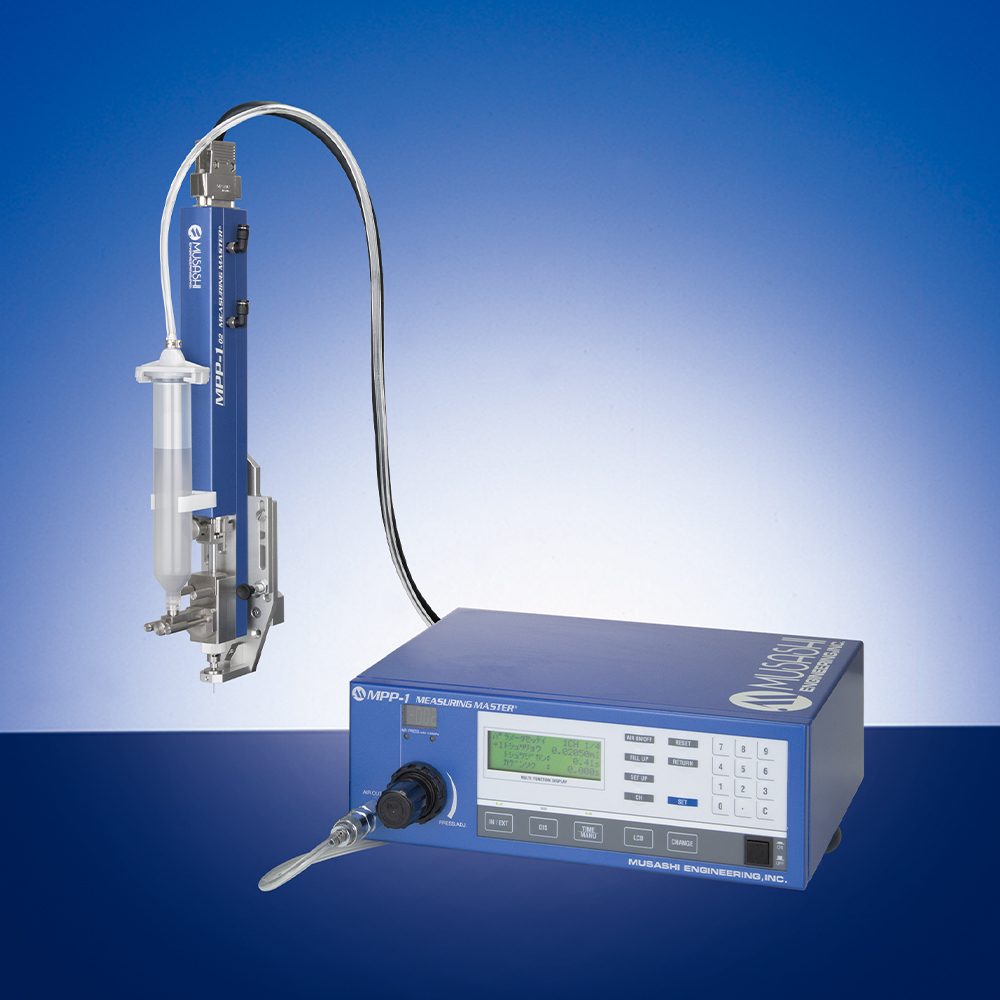

Capacity measuring digital control dispenser
Digital control plunger pump that supports high viscosity.
- This capacity measuring digital control dispenser discharges liquid with fluctuating viscosity accurately and in set quantities.
- Supports various applications, such as potting for LEDs and underfills, precision refills of oil, pouring electrolyte in various batteries, and ink discharge.
- Application viscosity supports from 1 – 100,000mPa, s, low viscosity to high viscosity.
- You can set dispensing conditions up to 400 ch using the multi-channel.
- Replace liquid without using tools and perform simple maintenance for wetted parts.
- CE marking (low voltage order, EMC order), EuRoHS conformity.
Applications
Dispensing reagents into
vial bottles
CIPG (gasket)
OCR (Dam)
Two-component radiant
adhesives
Specifications
| Item name | Volume measuring type digital dispenser MEASURING MASTER | ||
| Model | MPP-1 | ||
| Dispensing system | Volume measuring type & plunger type | ||
| Control system | Microcomputer digital control system | ||
| Dispensing volume range | Standard type | 0.15 mL | Select any one of them |
| B1 type | 0.15 mL | ||
| 0.30 mL | |||
| 0.65 mL | |||
| Minimum dispensing volume setting value | From 0.00001 mL | ||
| Fluid material supply pressure range | 0.001 to 0.500 MPa | ||
| Applicable container | Syringe (10, 20, 30, 50 or 70 mL) | ||
| Channel number | 400 CH | ||
| Rated voltage and frequency | AC100-240 V 50/60 Hz | ||
| Power consumption | 25 W | ||
| External dimensions | Controller section: W300×D250×H111 mm (excluding protrusion) Head section: W25×D86.5×H320 mm (excluding protrusion) | ||
| Weight | Controller section: approx. 4.5 kg Head section approx. 850 g (not including container and fluid material) | ||
