DOBOT SAFESKIN
Safe Human – Safe Robotic Environment:
Discover Helpful Features Of Dobot Safeskin
Discover Helpful Features Of Dobot Safeskin
Dobot Safe Skin
Provides Safety to Humans

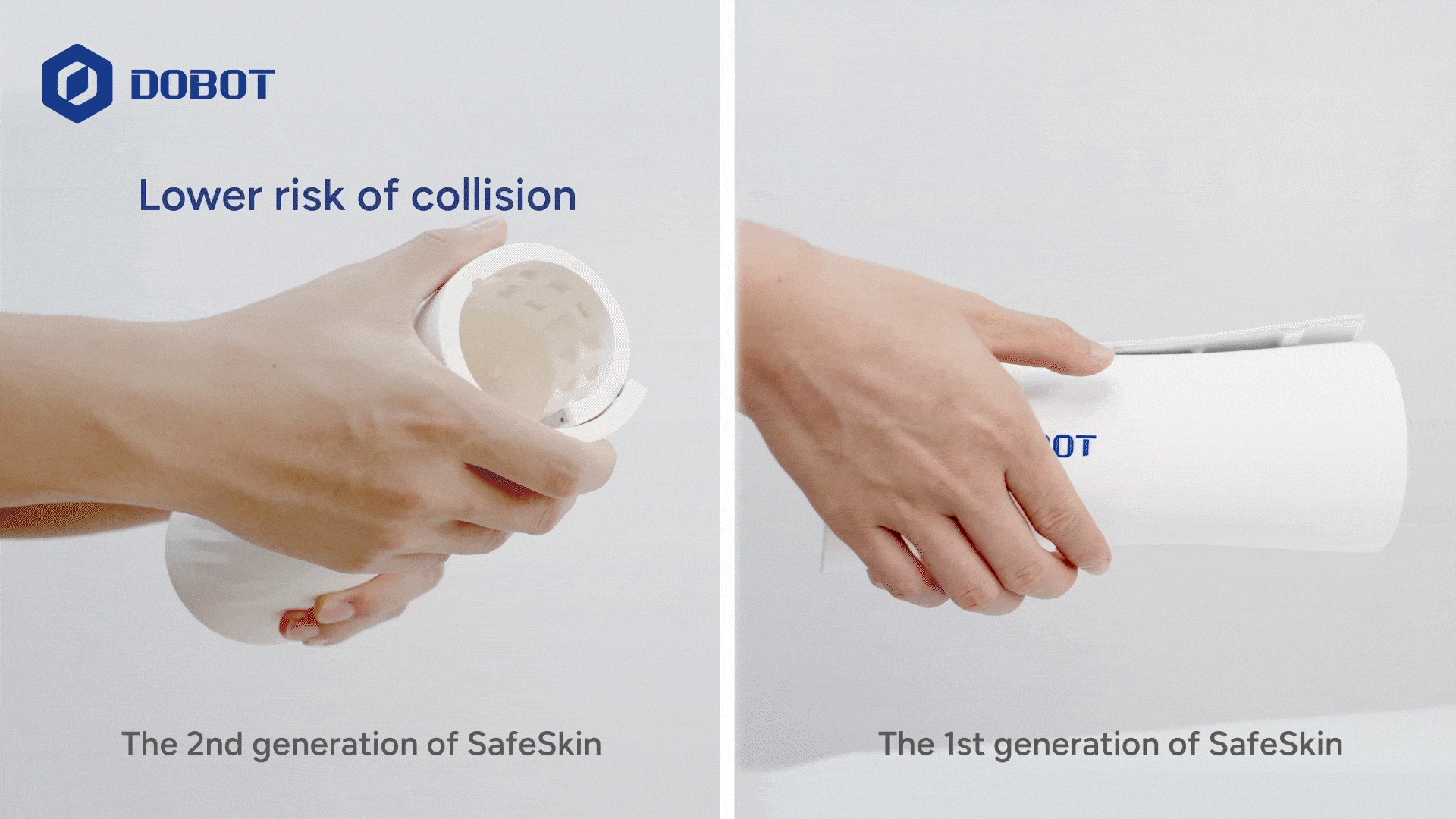

DOBOT SafeSkin is a silicone buffered wearable collision detection product customized by DOBOT for collaborative robots.
Inherently Safe Feature
DOBOT SafeSkin offers proximity pause mode and proximity dodge mode, ensuring a high level of efficient collision protection.
Pre-collision Sensing
Technology Feature
The technology can quickly intervene in the robot action before a collision occurs, without the need for early warning and speed reduction, helping avoid any damages.
Pre-collision Sensing Technology Feature

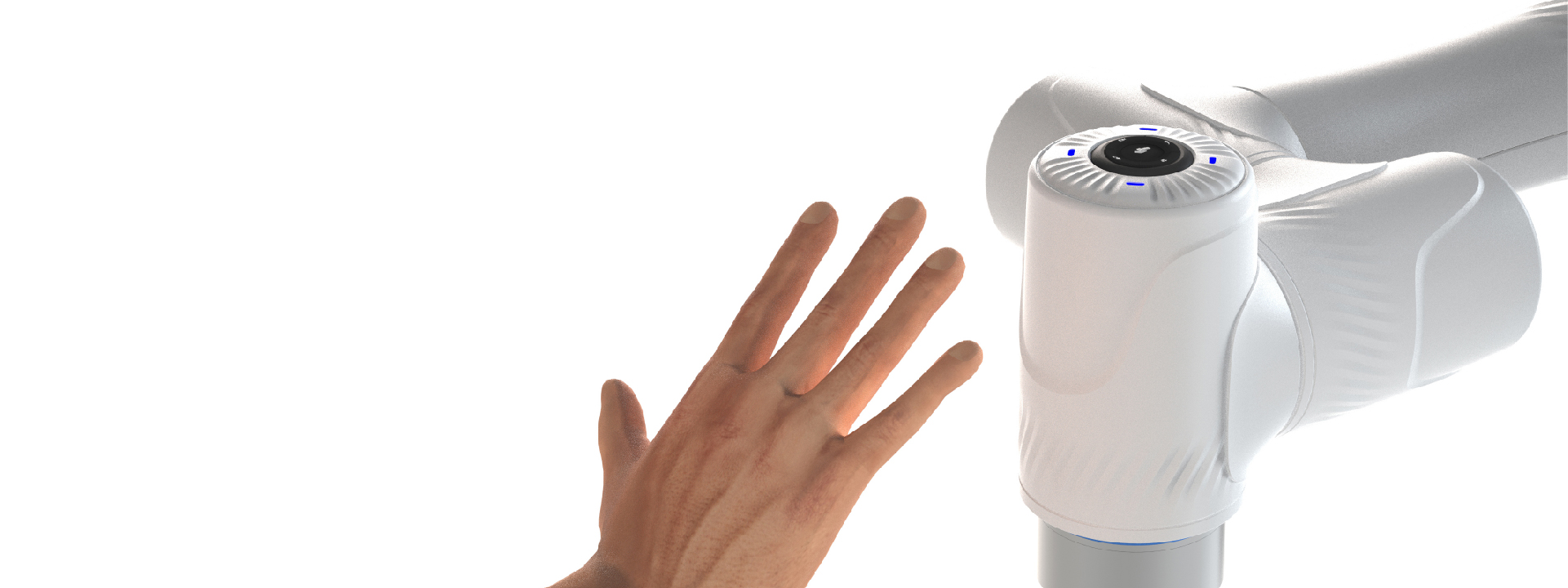

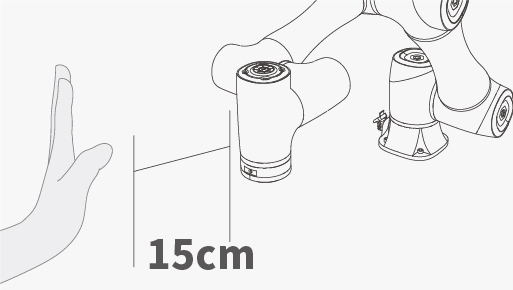

Long-distance space perception
With a 15cm ultra-long space sensing distance, DOBOT SafeSkin can effectively protect the operator from injury caused by the manipulator.

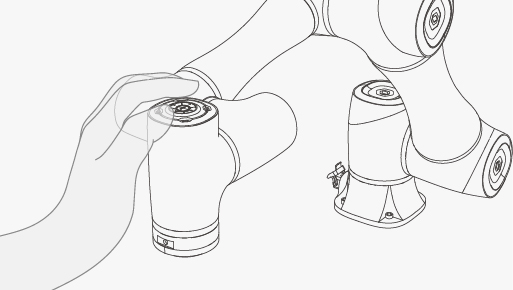

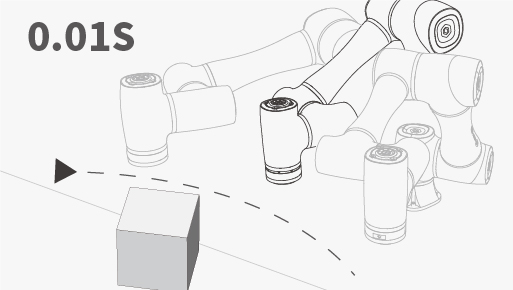

High sensitivity and rapid response
DOBOT SafeSkin responds fast within 0.01s, achieving human-computer cooperation and safe interaction with higher sensitivity and responsiveness.
Anti-interference and stable operation

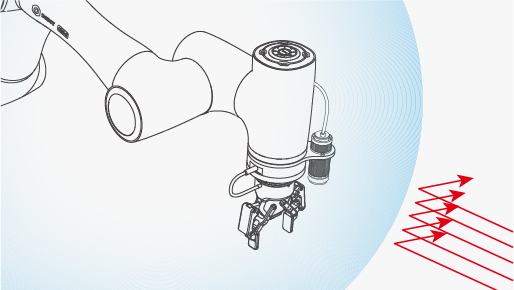

DOBOT SafeSkin can resist the interference source signal at the worksite with the shielding technology, designed to create a stable operating environment for the robot.

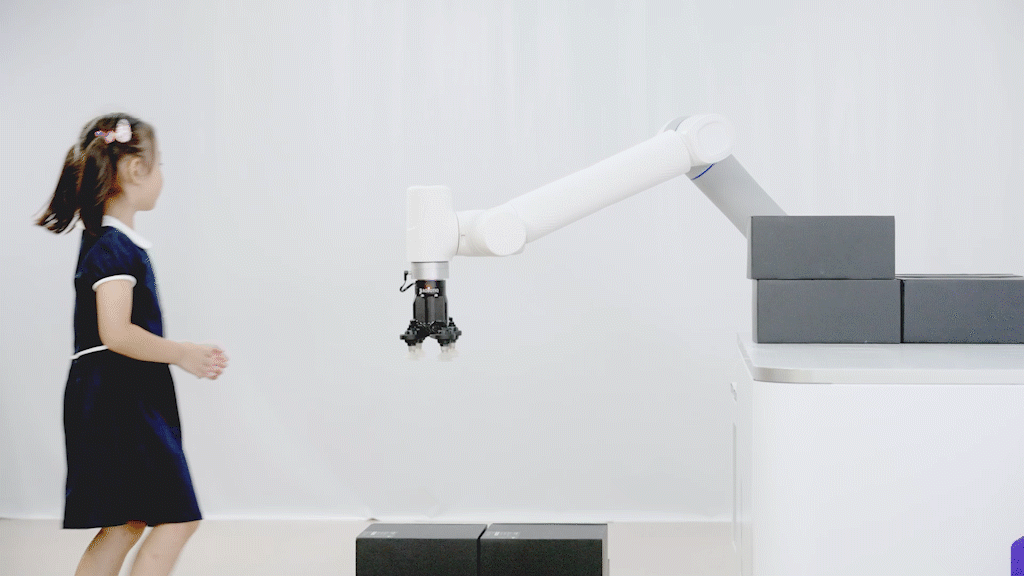

All-around safety
Without being affected by such shielding materials as cloth and plastic gloves and light sources, DOBOT SafeSkin sensing ability can ensure the safety in an all-around way.

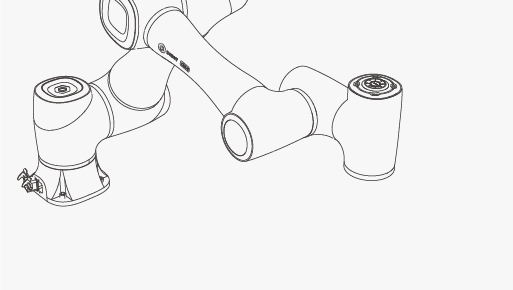

Quick installation and easy operation
With the user-friendly design, users can operate the DOBOT SafeSkin simply and install it quickly; once installed, it will be ready for use.

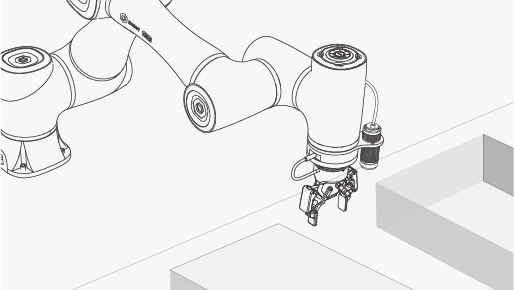

Ensure robot performance
During the use, DOBOT SafeSkin does not cause any loss to the robot’s performance and ensures its efficient operation.Specifications

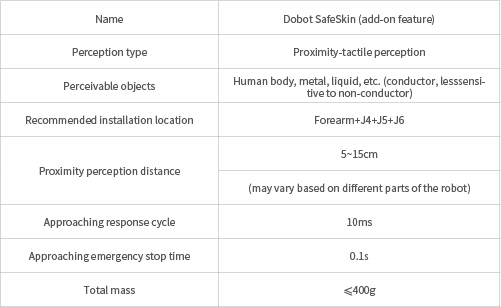

| Name | Dobot SafeSkin (add-on feature) |
|---|---|
| Perception type | Proximity-tactile perception |
| Perceivable objects | Human body, metal, liquid, etc. (conductor, lesssensitive to non-conductor) |
| Recommended installation location | Forearm+J4+J5+J6 |
| Proximity perception distance | 5~15cm |
| (may vary based on different parts of the robot) | |
| Approaching response cycle | 10ms |
| Approaching emergency stop time | 0.1s |
| Total mass | ≤ 400g |
