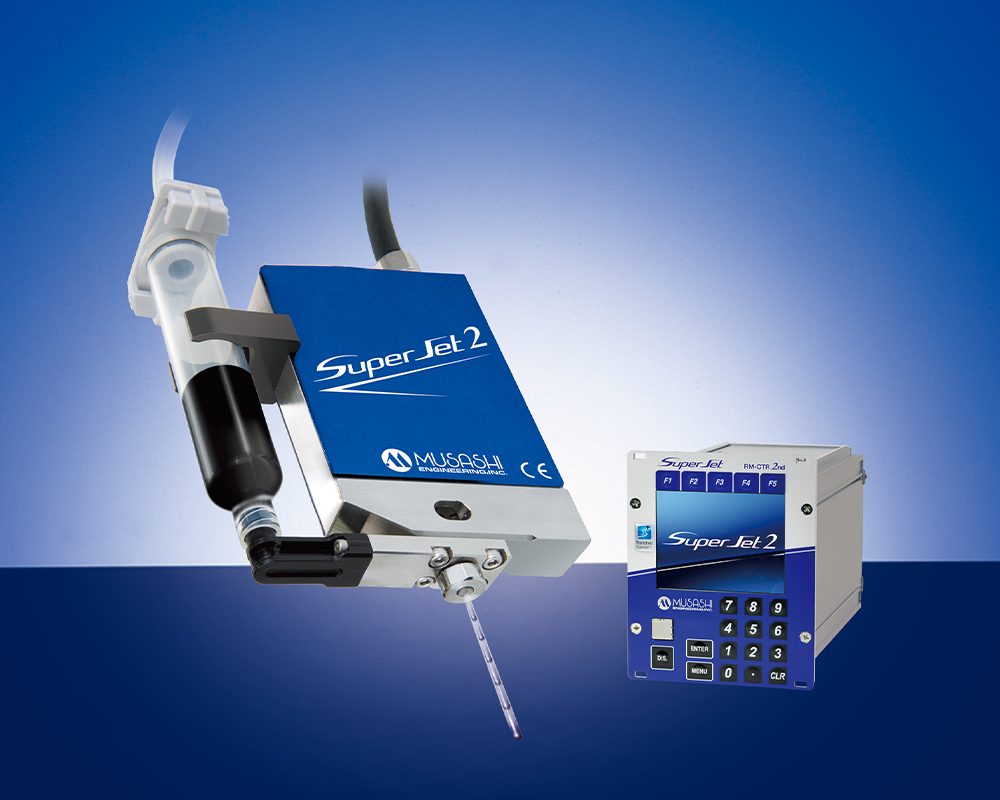

Ultrafast, non-contact jet Dispenser SuperJet2
Investigation of high reliability, high quality.
- Small amount 0.5nL/shot.
- We realize high throughput.
- We pursue improvement of convenience.
Applications
AG paste dispensing
Silicon sealing of sensor components
LCD touch panel TAB reinforcement
Specifications
| SuperJet2 head unit | |
| Model | MJET-S-2 |
| Dispensing method | Jet Method |
| Maximum operating frequency | 500Hz |
| Applicable fluid material | UF material, AG paste, encapsulant, Epoxy resin, grease, etc. |
| Applicable fluid material viscosity | 50-300,000 mPa.s (Reference value) |
| Fluid material supply method | Syringe (for 5 to 70mL) |
| Allowable fluid feed pressure | Up to 0.500 mPa |
| Allowable fluid feed part temperature | Up to 60°C, Up to 80°C |
| Applicable nozzle | Dedicated nozzle 27G, 28G, 30G, 31G, 33G, 38G |
| Conformity standard | EU RoHS2, CE marking (Low Voltage Directive, EMC Directive) |
| Weight | 0.4 kg (Including cable and connector. Excluding fluid material and material container) |
| Head controller | |
| Model | MJET-S-CTR-RM-2 |
| control method | Microcomputer digital control method |
| Display | 3.5 inch color graphic LCD |
| Fluid feed pressure setting range | 0.10-0.500 MPa |
| Supply air pressure | Up to 0.700 MPa |
| Dispense mode | LINE/MAN, LINE/SET, DOT/MAN, DOT/SET |
| Number of channels | 100 CH |
| Other functions | Multi-preset, Synchronized speed, RS-232C communication, Japanese-English-Chinese display switching |
| Rated voltage and frequency | AC100-240V, 50/60Hz |
| power consumption | 75W |
| Head controller mounting standard | 19 inch Subrack (IEC60297, DIN41494), 3Ux21HP |
| Conformity standard | EU RoHS2, CE marking (Low Voltage Directive, EMC Directive) |
| Weight | 1.6 kg |
