High viscosity, non-contact jet Dispenser SuperHiJet
JET high viscosity correspondence to develop.
- We cope to adaptation viscosity range 1,000,000mPa, s.
- Excellent landing position accuracy
- Rod is exchangeable.
Applications
AG paste dispensing
Silicon sealing of sensor components

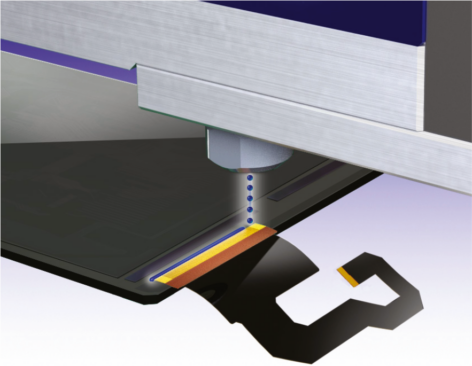

LCD touch panel TAB reinforcement
Specifications
| Dispense controller power supply unit model | MJET-S-CTR-RM-PW-A |
| Dispensing system | Jet system |
| Control system | Microcomputer digital control system |
| Applicable fluid materials | UF material, Ag paste, sealant, epoxy resin, grease, etc. |
| Applicable container | Syringe (5 to 70 mL), tank |
| Temperature setting range | MAX: 100°C |
| Dispensing modes | LINE/MAN, LINE/SET, DOT/MAN, DOT/SET |
| Operating frequency | 300 Hz (maximum burst frequency: 500 Hz) |
| Main functions | Synchro speed, multiple presets, Japanese-English-Chinese display switching, USB communication, RS-232C communication |
| Channel number | 100 CH |
| Input signals | Dispense signal, channel switching, dispensing mode switching |
| Output signals | Dispensing completion, in-dispensing, error, alarm, busy, power on |
| Rated voltage and frequency | AC100-240 V 50/60 Hz (head controller, temperature controller) |
| Power consumption | MAX: 75 W (head controller) MAX: 68 W (temperature controller) |
| Conformity standards | CE-marking (Low Voltage Directive, EMC Directive), EU RoHS |
| Dispense head unit dimensions | W89.5×D119.5×H125 mm |
| Dispense head unit weight | 0.7 kg |
| Head controller dimensions | W106×D171.3×H128.4 mm Suits 19-inch sub-rack (3Ux21HP) |
| Head controller weight | 1.6 kg |
| Controller power supply unit dimensions | W140×D239×H108 mm |
| Controller power supply unit weight | 2.0 kg |
| Temperature controller dimensions | W120×D140×H90 mm |
| Temperature controller weight | 1.0 kg |
