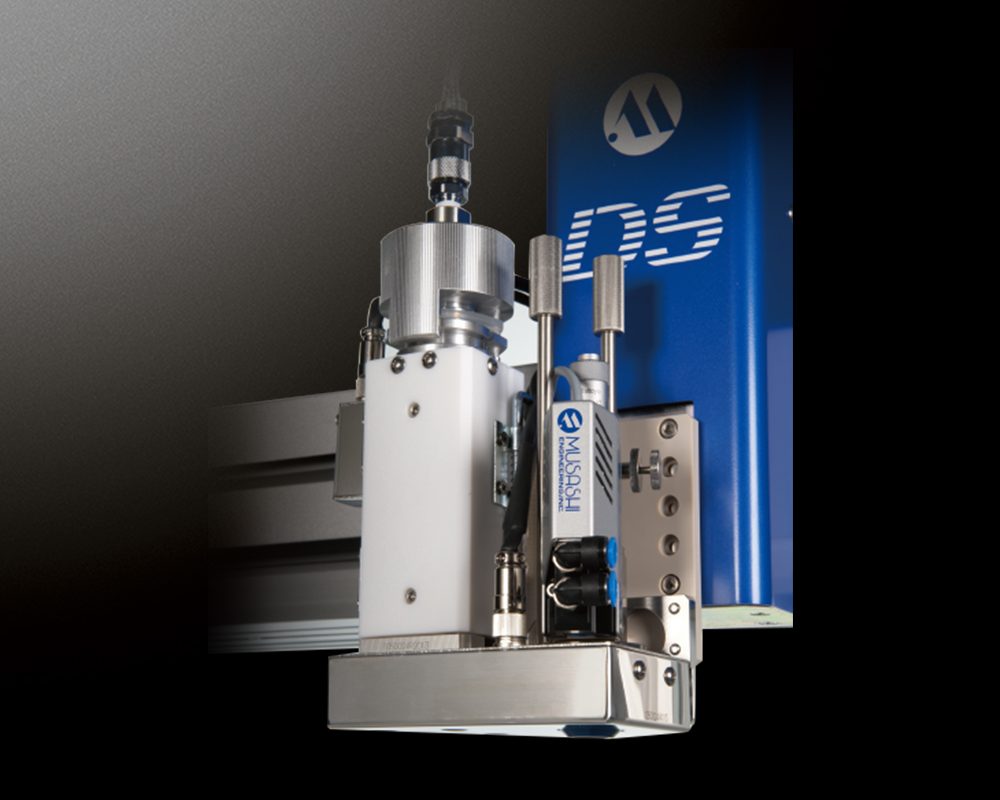

Hot melt-adaptive non-contact jet Dispenser HM-AeroJet
For curved surface work, it is non-contact seal dispensing
- Nozzle gap control is unnecessary because it is JET dispensing.
- It is most suitable for process improvement from the double-stick tape joining.
- Drawing width is kept constant by the synchronized speed function.
Applications
Smartphone cover adhesion
Line dispensing on uneven surface
Specifications
| Item name | Customized AEROJET(applicable to PUR) version 6-A | |
| Model | M35-2582 | |
| Product configuration | ||
| Dispensing head | M35-2582-032-00 | |
| Temperature control unit | M35-2582-033-00-1 or M35-2582-033-00-2 | |
| Dispense controller | MJET-3-CTR | |
| Customized temperature controller | M32-2240-008-00 | |
| Dispensing head | ||
| Air supply pressure | 0.45 to 0.8MPa | |
| Stroke adjustment function | Micrometer type | |
| Weight | Approx. 0.5kg | |
| Temperature control unit | ||
| Mountable container of fluid material | 30mL syringe | |
| Weight | Approx. 1.5kg | |
| Controller section (MJET-3-CTR) | ||
| Control system | Electro/pneumatic system | |
| Liquid supply pressure range | 0.005 to 0.700MPa | |
| Dispensing time control circuit | Digital timer circuit | |
| Dispensing time setting | Dot mode | 1 to 9999msec. |
| Line mode | Turning on time: 0.01 to 99.99msec. | |
| Turning off time: 0.01 to 99.99msec. | ||
| Dispensing frequency setting function | 1 to 9999 times (At the LINE mode) | |
| Display section | LED digital display | |
| Input/ output signal | Input (4-pin metal connector: non-contact or contact signal) (I/O terminal: non-contact) | Dispensing signal |
| Mode switching signal | ||
| Output (non-contact output) | Dispensing completion signal | |
| In-dispensing signal | ||
| Power-on signal | ||
| Main mode state signal | ||
| Sub mode state signal | ||
| Pressure decrease signal | ||
| Supply air pressure | Max. 0.800MPa | |
| Power supply/power consumption | 100 to 240V AC, 50/60Hz, 62W | |
| Weight | 4kg | |
| Customized temperature controller for heating | ||
| Control system | PID control method | |
| Temperature setting range | 0 to 180 °C | |
| Temperature adjustment range | 30 to 180 °C (when temperature environment is 25 °C) | |
| Rated power source and frequency | 100V AC, 50/60Hz | |
| Applicable fuse | 250V T2.0A (time-lag fuse ø5 type) | |
| Operating temperature range | 15 to 35 °C | |
| Operating humidity range | 25 to 75% (non-condensing) | |
| Weight | Approx. 1kg | |
| Alarm output | Relay contact | |
| Alarm output contact capacity | 250V AC 3A, 30V DC 3A | |
