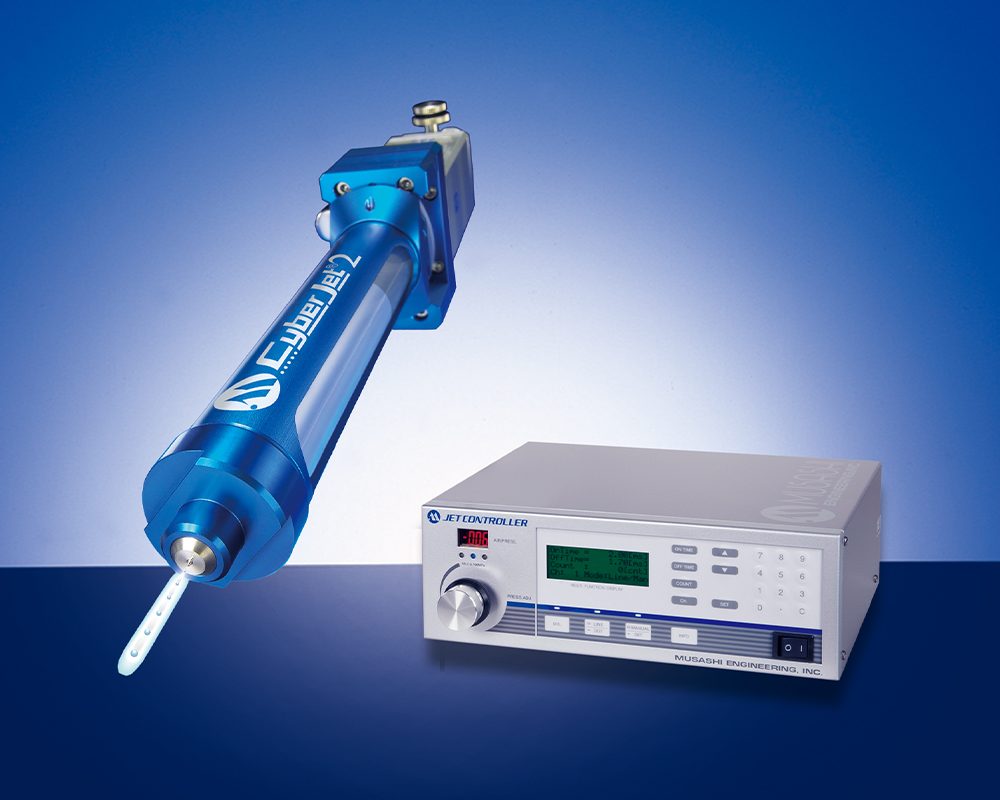

Low viscosity non-contact jet Dispenser CyberJet2
We can apply liquid materials of super low viscosity in high precision.
- Class minimum. We realized dispense which was small amount of 0.03 mg.
- Class minimum. We largely reduced movement sound.
- Medicinal solution, flux, high-speed dispense of dry process lubricant.
- CE marking, EURoHS conformity version is line-up, too.
Applications
Dispensing of dry type grease
Flux application on PCB
Non-contact dripping to
inspection kits
Non-contact dispensing to microwell plate
Specifications
| Item name | Non-contact Jet Dispenser CYBERJET2 |
| Model | MJET-C-2 |
| Head Section | |
| Driving system | Electromagnetic* |
| Supply air pressure | 0.5 MPa or less |
| Applicable syringes | All sizes (5 to 70 mL) applicable |
| Applicable fluids | Flux, moisture proof insulant fluid, UV resin, etc. |
| Use nozzle | Pipe type (1 L, 2 L, 3 L): 15 to 32G |
| Pipe type (1 L, 2 L, 3 L): 15 to 28G Teflon coated | |
| Integrated structure (SHN): 28 to 36G | |
| Temperature control function | Holder equipped with heating temperature control |
| Controller Section | ||
| Control system | Electro/pneumatic method | |
| Dispensing pressure regulating range | 0.005 to 0.700 MPa | |
| Control circuit of dispensing time | Digital timer circuit | |
| Dispensing time setting range | DOT mode | 2 to 5,000 msec |
| LINE mode | ON time: 1.50 to 99.99 msec | |
| OFF time: 6.00 to 99.99 msec | ||
| Shot count setting range | 1 to 9999 times (for LINE mode) | |
| Supply pressure | Max. 0.800 Mpa | |
| Rated power supply and frequency | AC100 to 240 V 50/60 Hz | |
| Weight | 4kg | |
