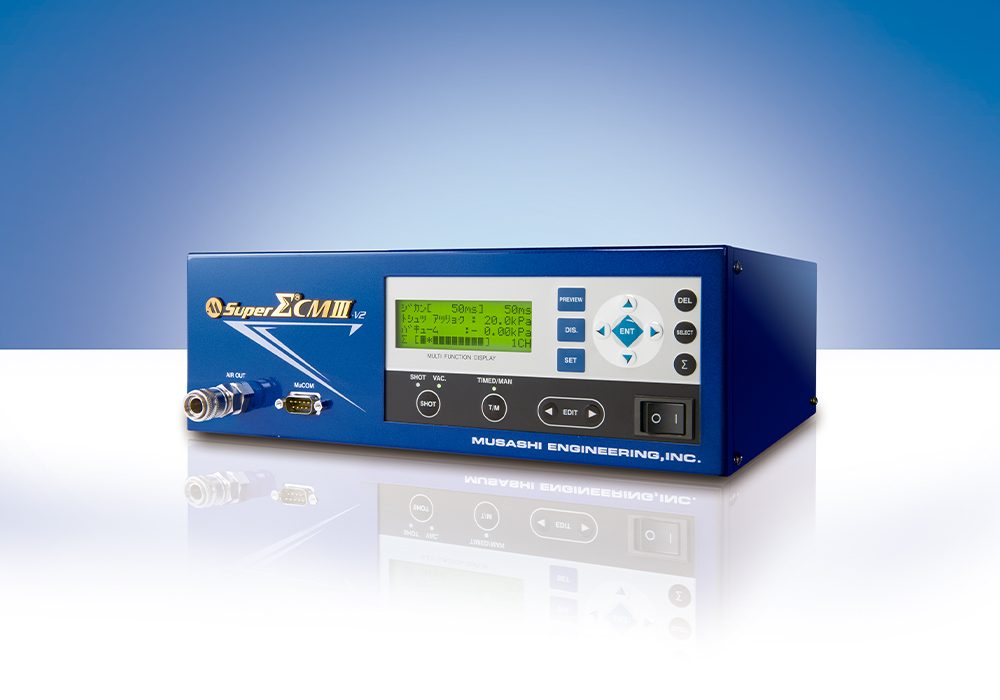

Revision function digital control Dispenser SuperΣCMIII belonging to
No. 1 overwhelming "global standards"
We concentrate limits of Musashi technology and realize super stable dispensing.
- High precision dispense of the highest quality kept on polishing.
- High reliability that was demonstrated.
- High cycle time high throughput.
- We contribute to running cost down.
- It is all-in-one in Full Automation revision function.
- We realize interlocking movement with automatic machine, complete control of dispense condition.
"Σ3 major functions" help to increase yield and contribute to a smarter production line
Function 1
Automatic correction of volume reduction

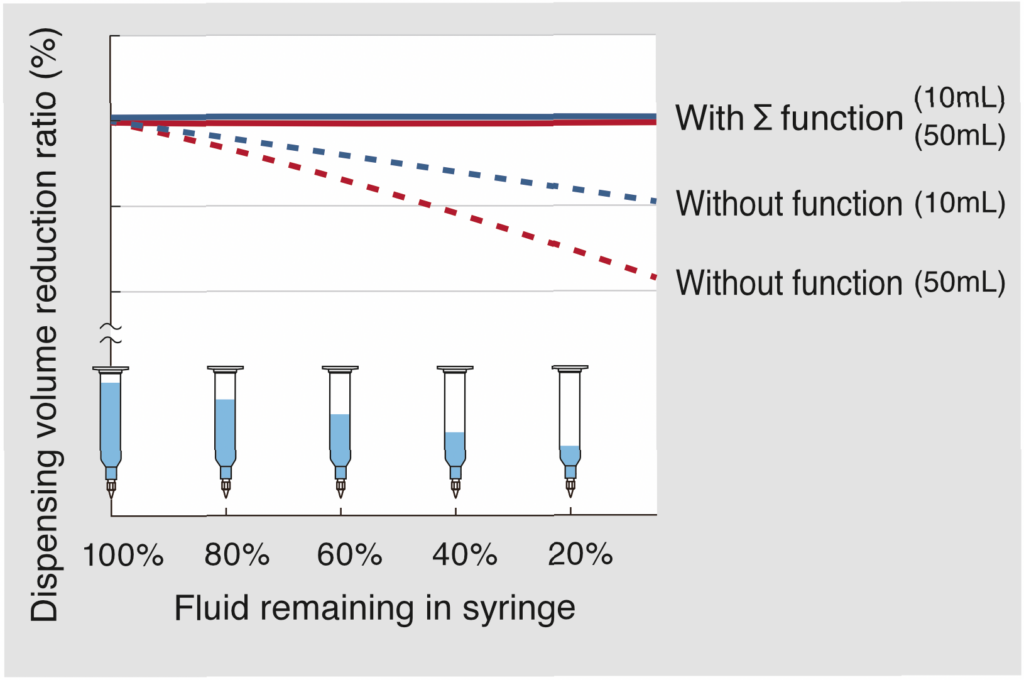

Correction of reduction in dispensing amount caused by the effects of decreased syringe volume. Delivers reliable, high-precision dispensing throughout the entire syringe.
Function 2
Automatic vacuum correction
Constantly maintains the optimum vacuum level automatically for more reliable dispensing precision.
Function 3
Automatic low fluid alarm
Constantly detects and monitors the remaining fluid level in the syringe with a high level of precision.
Specifications
| Product name | Fully digital controlled dispenser | |
| Model | S-SIGMA-CM3-V5 | S-SIGMA-CM3-V2 |
| Dispensing system | Air-pulse system | |
| Control system | Micro-computer controlled electronic-pneumatic system | |
| Dispensing modes | TIMED/MANUAL mode | |
| Dispensing pressure setting range | 0.030 to 0.500 MPa | 0.005 to 0.200 MPa |
| Dispensing time setting range | 0.001 to 9999.999 s | |
| Vacuum pressure setting range | -0.020 to 0 MPa | |
| Main functions | Automatic correction of volume reduction, automatic fluid-drip prevention, automatic remaining, volume alert, alpha (α) correction, delta (δ) correction, vacuum pressure correction，remaining volume display correction，dispensing shot counter, stopwatch, Japanese-English display switch, source pressure error, exhaust error, vacuum pressure error, solenoid valve error, solenoid valve alarm | |
| Channel number | 100 CH | |
| RS-232C serial communication | Available | |
| Input signals | Dispense, channel switching, dispensing mode switching, channel preset, channel specification, channel step | |
| Output signals | Ready, dispensing completion, in-dispensing, in-dispensing cycle, solenoid valve alarm, error, remaining volume alert, power on | |
| Rated power supply and frequency | AC100-240 V 50/60 Hz | |
| Power consumption | 30 W | |
| Conformity standards | CE-marking (Low Voltage Directive, EMC Directive) EU RoHS | |

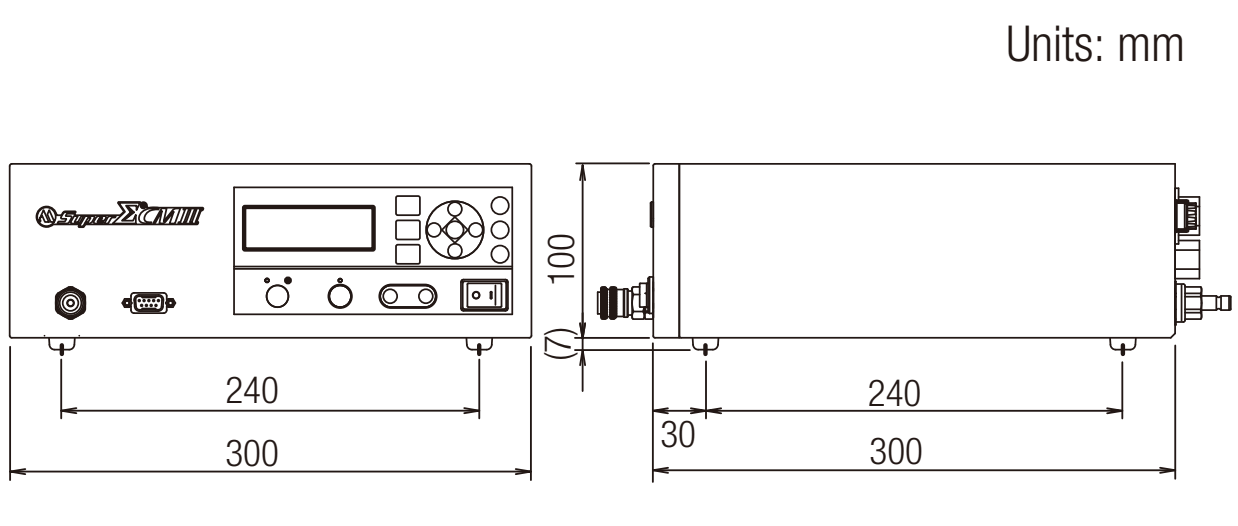

| Dimensions W*D*H | W300×D300×H100 mm | |
| Weight | 5.8 kg | |
